500 kg Automatic Sliding Operator

Leveraging the factory's mature processes and advanced technology, OWNIC offers global buyers a 500 kg Automatic Sliding Operator, suitable for industrial-grade door systems requiring high-intensity and high-frequency usage.

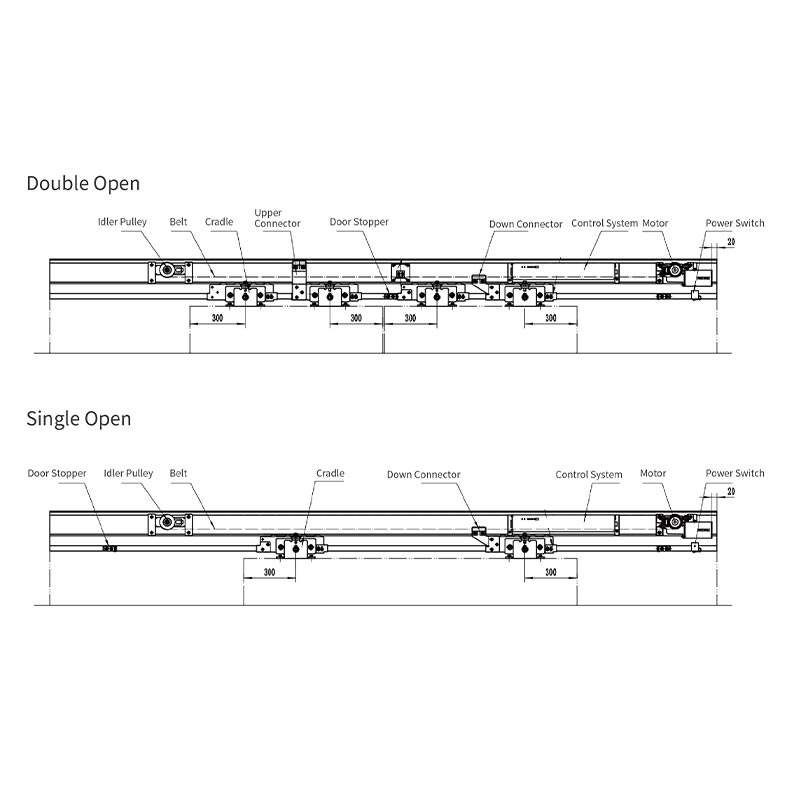

Technical Data:

Core Engineering Advantages

Unlike our 100kg, 150kg, and 180kg automatic sliding door operators, the 500 kg Automatic Sliding Operator is an industrial-grade door system component that has undergone specialized adjustments to meet the diverse requirements of complex engineering projects.

1. Ultra-Heavy-Duty Structural Design

Throughout its design and manufacturing, the 500kg sliding door operator utilizes an industrial-grade, high-strength unit frame and a thickened guide rail system. Its core load-bearing components feature a reinforced design, enabling them to support a 500kg door panel over extended periods without deformation.

2. Industrial-Grade Drive System

Powered by a high-output motor that delivers stable performance, this product is engineered for continuous, long-duration operation. We have optimized the transmission structure to minimize slippage and energy loss, ensuring smooth and steady operation even under heavy load conditions.

3. High Stability and Low Failure Rate

This high-performance product features a precision control system paired with stable motor output. It operates without vibration or deviation over long periods, thereby reducing maintenance frequency and minimizing the risk of downtime.

4. Adaptability to Extreme Environments

As this product is primarily intended for industrial settings—where it may encounter high temperatures, freezing conditions, dust, or wind pressure—its structure incorporates anti-corrosion and dust-proof features, offering superior adaptability to specialized engineering environments.

5. Advanced Safety Protection System

We have equipped this sliding door operator with multiple safety mechanisms, including anti-pinch, anti-collision, and emergency braking functions. It supports integration with fire safety and security systems, and allows for manual opening in the event of a power outage or system failure, thereby safeguarding both personnel and equipment.

Under what circumstances is the 500 kg Automatic Sliding Operator a mandatory choice?

The 500 kg Automatic Sliding Door Operator becomes an indispensable choice—precluding the consideration of lighter-duty models—when the following specific conditions coexist:

1. Single Door Leaf Weight ≥ 400 kg

First and foremost, this constitutes a strict technical requirement; the weight of the door leaf itself exceeds the operational capacity range of standard commercial sliding door operators.

Common examples of such heavy door leaves include: laminated blast-resistant glass (20 mm or thicker) combined with a steel frame, lead-shielded doors, insulated composite doors for cold storage facilities, airtight doors for cleanrooms, and similar structures.

2. Single Door Leaf Width ≥ 2500 mm (or Double Door Width ≥ 5000 mm)

Extra-wide door leaves present two major challenges: the center of gravity is situated far from the drive point, thereby exponentially increasing the torque requirements for the motor; furthermore, in double-door configurations, a lack of synchronization between the leaves can easily lead to jamming or damage to the guide rails. In such scenarios, the use of a heavy-duty sliding door operator is strongly recommended.

3. Application in Critical, Strategic-Level Passageways

These are locations where the closure of a passageway due to door operator failure is strictly prohibited, as such an event would trigger a major operational crisis. Examples include international airports, the main emergency entrances of national or regional medical centers, and the access points to central control rooms for high-speed rail or subway systems.

4. Extreme Environmental Conditions

Standard door operators are unable to maintain long-term, stable operation in environments characterized by low temperatures, high salt-spray concentrations, high humidity, strong winds, or stringent cleanliness requirements. In such cases, upgrading to a higher-performance model is recommended.

5. Mandatory Regulatory or Project Requirements

Based on the applicable national and industry codes specific to your project's location—particularly where regulations explicitly mandate the use of heavy-duty automatic doors—it is imperative to select a configuration with sufficient capacity to meet these mandatory requirements.

FAQ

Q: Are there any specific structural requirements for installing this sliding door operator?

A: It must be mounted directly onto the primary building structure; under no circumstances should it be secured to lightweight partition walls or standard aluminum square tubing.

It must be anchored to an I-beam, channel steel, or a reinforced concrete beam with a minimum thickness of 20 cm. This is because the shear forces generated by the door body—particularly during the moments of acceleration and braking—are substantial.

Q: What is the recommended maintenance schedule for the 500 kg Automatic Sliding Door Operator?

A: This product features a highly conservative design with significant safety margins, making it exceptionally durable in practice. It does not require frequent maintenance; simply following our recommendations is sufficient.

Every 3–6 months: Inspect the track for any foreign objects, and check the tension of the synchronous belt or chain.

Annually: Inspect the mounting bolts on the door hangers to ensure they have not loosened due to vibration.

Lubrication: Apply lubricant only to the heavy-duty pulley bearings; strictly avoid applying oil or grease to the surface of the guide rail itself.
