How Does an Automatic Door Motion Sensor Improve Doorway Performance?

Why Motion Detection Matters at Automatic Doorways

An entrance is one of the busiest points in many commercial and public buildings. Customers may carry shopping bags, employees may have their hands full, patients may require assistance, and visitors may move through the doorway continuously. Requiring people to manually push or pull a door can create unnecessary friction.

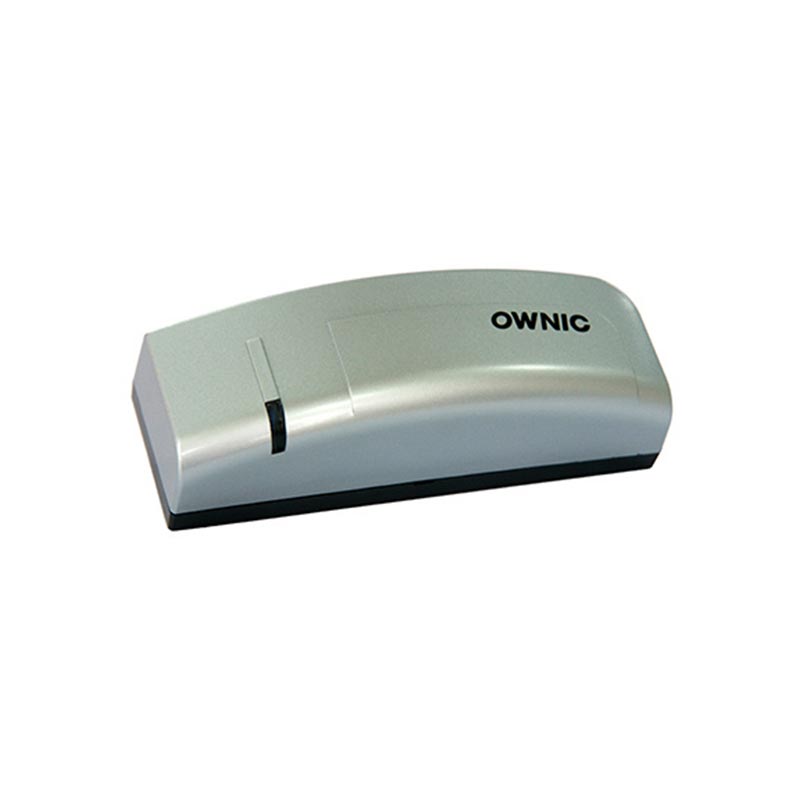

An Automatic Door Motion Sensor provides the detection function needed to make hands-free operation possible. When movement is detected in the designated zone, the sensor communicates with the automatic door operator, allowing the door to open at the appropriate moment.

The value of the sensor extends beyond convenience. Accurate detection can help prevent premature closing, reduce unnecessary door cycling, support smoother pedestrian traffic, and create a more predictable entrance experience. In environments where hygiene is important, touch-free activation can also reduce the number of surfaces that users need to physically touch.

How an Automatic Door Motion Sensor Works

Although sensor technologies vary, the operating concept is straightforward. The sensor monitors a defined area near the doorway. When movement meets its detection criteria, it produces an electrical output that the door control system interprets as an opening request.

1. Monitoring: The sensor continuously monitors its configured detection zone.
2. Movement detection: A person or moving object enters the sensing area.
3. Signal processing: The sensor evaluates the detected movement according to its configured parameters.
4. Activation: An output signal is sent to the automatic door controller.
5. Door operation: The operator activates the door-opening mechanism.
6. Re-closing control: Once the relevant conditions are satisfied, the system allows the door to return to its closed position.

Depending on the sensor design, detection may use technologies such as microwave radar, infrared sensing, or a combination of detection methods. The appropriate technology depends on the doorway configuration, traffic pattern, mounting position, environmental conditions, and required level of detection accuracy.

Common Doorway Problems an Automatic Door Motion Sensor Can Address

Selecting a sensor should begin with the actual problems occurring at the entrance. Many performance issues are not caused by the door operator alone. Detection errors can contribute to delayed opening, unexpected closing, repeated activation, or doors remaining open longer than necessary.

These issues demonstrate why the sensor should be treated as a critical part of the complete entrance system rather than as a small accessory added at the final stage of a project.

Key Performance Factors to Evaluate

Different entrance projects have different requirements. A sensor installed at a quiet office entrance does not necessarily face the same challenges as one installed at a busy supermarket, hospital, airport, hotel, or manufacturing facility.

• Detection range: The sensing area should cover the intended approach zone without creating excessive unwanted activation.
• Detection stability: Consistent recognition is important in areas with frequent pedestrian movement.
• Response speed: Rapid signal response can contribute to smoother door opening.
• False activation resistance: The sensor should minimize unnecessary triggering caused by irrelevant movement or environmental conditions.
• Environmental tolerance: Temperature changes, lighting conditions, airflow, vibration, moisture, and other site factors may affect installation requirements.
• Compatibility: The sensor's output and electrical characteristics should be compatible with the automatic door controller.
• Adjustment capability: Configurable sensing parameters can make it easier to optimize performance after installation.
• Housing quality: A durable enclosure is particularly important for high-traffic or demanding environments.

Where Automatic Door Motion Sensors Are Used

Motion-sensing automatic doors are suitable for a wide range of environments where convenient, controlled pedestrian access is required.

Installation Considerations for Reliable Detection

Even a well-designed Automatic Door Motion Sensor can underperform when installation conditions are overlooked. The sensor should be positioned according to the manufacturer's recommended mounting height, orientation, sensing angle, and detection area.

1. Study pedestrian flow first. Identify the direction from which people approach and the area where detection should begin.
2. Check the mounting position. Avoid locations where structural components unnecessarily block the sensing field.
3. Consider environmental movement. Nearby fans, curtains, plants, machinery, or other moving objects may contribute to unwanted activation.
4. Configure sensitivity carefully. Higher sensitivity is not automatically better. The goal is reliable detection within the intended area.
5. Verify controller compatibility. Confirm electrical specifications and output requirements before connecting the sensor.
6. Test real traffic conditions. Walk toward the door from different directions and observe whether detection occurs consistently.

For commercial projects, testing should include normal operating conditions rather than a single demonstration. Different body heights, walking speeds, traffic directions, and group sizes can reveal detection limitations that may not be visible during a basic installation test.

Maintenance and Troubleshooting Guide

Regular inspection can help preserve stable sensor performance. Maintenance requirements vary according to the product design and operating environment, but several basic checks are broadly useful.

• Keep the sensor surface clean and free from dust or contamination.
• Inspect the mounting position for movement or loosening.
• Check whether new objects have entered the sensing area.
• Observe whether the door is opening too early, too late, or repeatedly without a clear cause.
• Inspect wiring and connections according to the equipment manufacturer's instructions.
• Re-test the detection zone after building modifications or changes to nearby equipment.

Practical Selection Checklist for Projects

When purchasing an Automatic Door Motion Sensor for a new project or replacement application, technical specifications should be considered together with actual site requirements.

For OEM, commercial, or large-scale projects, it is also useful to discuss the application with the manufacturer before finalizing specifications. A supplier with practical product knowledge can help identify compatibility issues and installation considerations before they become costly site problems.

Business Benefits of a Reliable Motion Sensor

The immediate benefit of automatic detection is convenience, but the long-term value can be much broader. A reliable sensor supports the performance of the complete automatic entrance system.

• Better user experience: Visitors can approach and pass through the doorway with less physical effort.
• Improved accessibility: Hands-free activation can make entrances easier to use for people carrying items or those with limited mobility.
• Smoother traffic flow: Responsive detection can reduce unnecessary stopping at busy entrances.
• Reduced touch points: Automatic activation minimizes the need to physically handle door surfaces.
• Operational consistency: Stable detection helps the door behave more predictably throughout the day.
• Better system integration: Properly matched sensors can work as part of a wider automatic access solution.

In other words, the motion sensor is small compared with the complete door assembly, but its performance can have an outsized effect on how the entrance feels and functions in everyday use.

Frequently Asked Questions

Building a More Reliable Automatic Entrance

An Automatic Door Motion Sensor may be a compact component, but it plays an important role in determining how an automatic entrance responds to real-world pedestrian movement. Reliable detection can improve convenience, accessibility, traffic flow, hygiene, and overall system usability.

The best results come from treating the sensor as part of the complete door system. Detection range, sensitivity, environmental conditions, mounting position, controller compatibility, and maintenance all need to work together. Choosing a sensor based solely on price or basic specifications can create performance issues later, while application-focused selection can help deliver a more dependable installation.

For businesses, distributors, door-system integrators, and project contractors, working with an experienced manufacturer can also simplify product matching and technical communication. Ningbo OWNIC Technology Co., Ltd. focuses on motion sensing technology and provides solutions designed for automatic door applications and different project requirements.
