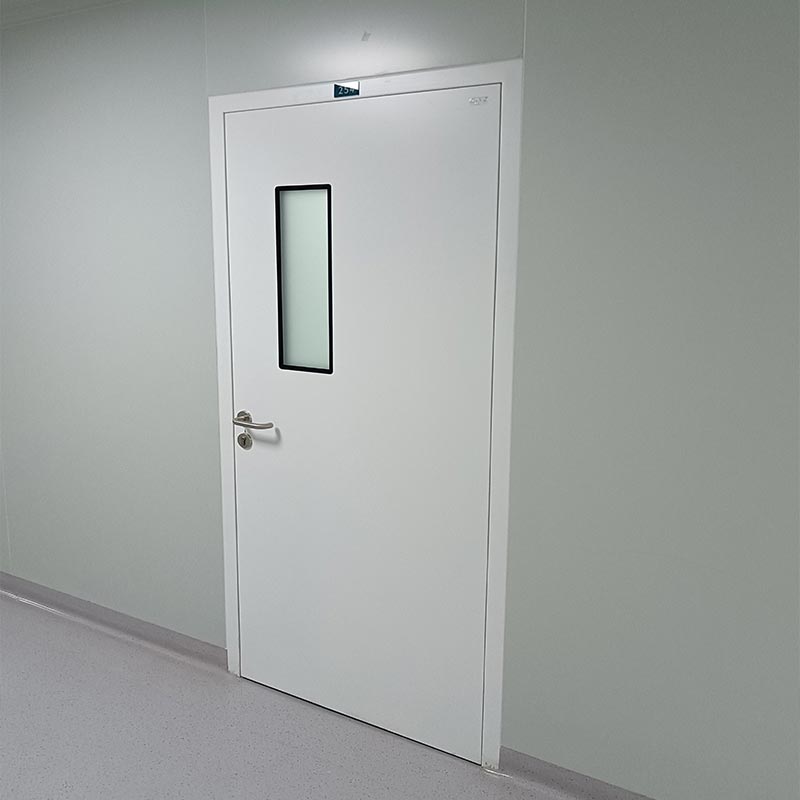

Laboratory Swing Door

The Laboratory Swing Door is one of the products offered by OWNIC. We are a company founded in 1981, and as a manufacturer of medical and commercial doors, we possess comprehensive customization and R&D capabilities. This door is designed for long-term use, is easy to maintain, and resists dust accumulation.

Send Inquiry

Product Description

Application:

Operating Room, Office, Ward

Product Features:

Door leaf and frame are flush with 50mm wall after installation, less dust, convenient to clean.

Technical Data:

Door Weight	Max100kg
Door Width	700~1200mm
Door Height	2100mm (Standard)
Open and Close Force	<75N
Repeated Open and Close	> 100,000 times

Laboratory Swing Door

Key Requirements for Installation and Usage

Please note: Prior to commencing the project, you must verify that the intended installation wall is of solid construction—specifically, either concrete or a sandwich panel wall reinforced with steel studs.

The floor flatness at the installation site for the Laboratory Swing Door must be within ≤2 mm/m² to ensure that the bottom sealing strip compresses evenly.

It is strictly prohibited to drill holes in the door or apply adhesive tape, as doing so would compromise the airtight layer. Should such modifications be absolutely necessary, please contact OWNIC to obtain technical advice or request a custom solution.

For routine cleaning, use only neutral or specialized laboratory-grade cleaning agents; the use of strong oxidizing agents—such as concentrated sodium hypochlorite solutions—is strictly forbidden.

What configurations are recommended for different types of laboratories?

Laboratory Type	Core Requirements	Recommended Specifications
Biosafety Laboratories (BSL-2/3)	Airtight + Negative Pressure Retention + Easy to Disinfect	Stainless Steel Door + EPDM Sealing + Automatic Door Closer
Chemical Analysis / Toxicology Laboratories	Resistant to Strong Acids and Bases + Corrosion-Resistant	PP/Compact Laminate Door Body + All-Plastic Hardware
Cleanrooms (ISO Class 5–8)	Particulate Control + Smooth Surface Finish	HPL-Laminated Steel Plate + Seamless Rounded-Corner Design
GMP Pharmaceutical Facilities	GMP Compliant + Easy to Clean + Traceability	Antibacterial Surface + Door Status Sensor + Data Interface
Animal Facilities / ABSL	Escape-Proof + Gnaw-Resistant + High Sealing Integrity	Thickened Steel Plate + Rodent-Proof Bottom Seal

FAQ

Q: What material options are available for the door leaf of the Laboratory Swing Door?

A: Common materials include antimicrobial panels, stainless steel, HPL (High-Pressure Laminate), and chemical-resistant materials. We welcome you to contact us for custom solutions.

Q: Is this door suitable for use in high-cleanliness laboratories?

A: It is not recommended. The Laboratory Swing Door is primarily designed to provide basic isolation and security management.

For environments with high cleanliness requirements, we recommend choosing our airtight doors or specialized cleanroom door series instead.

Q: Can the door dimensions and opening direction be customized?

A: Yes. We support single-leaf or double-leaf configurations, opening either inward or outward. Dimensions can be customized to fit the actual door opening in your laboratory; optional features such as observation windows, kick plates, and access control systems can also be added.

Q: How is the door's corrosion resistance? What types of chemicals can it withstand?

A: The door is constructed using chemical-resistant materials capable of withstanding common laboratory chemicals, such as acid and alkali solutions, as well as disinfectants.

Please note: For highly corrosive chemicals, please refer to the specific material grade specifications and avoid prolonged direct contact.
