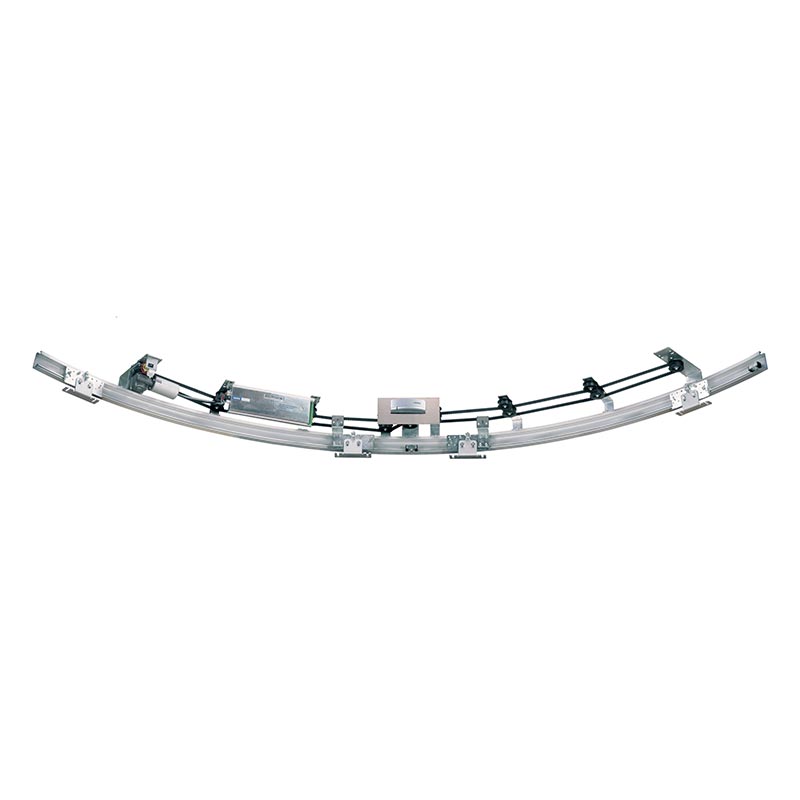

Automatic Curved Operator

As a professional manufacturer and supplier, OWNIC offers high-quality and durable Automatic Curved Operators. These systems drive the door panels to open and close smoothly along a curved track, making them ideally suited for door systems at the entrances of high-end commercial buildings and modern architectural structures.

Technical Data:

What are the technical challenges associated with automatic curved door operators?

Driving a curved door requires sliding door operator technology that is inherently more complex than that used for linear doors; consequently, partnering with a specialized manufacturer like OWNIC is essential. We leverage our professional, mature, and advanced technologies to address the specific challenges encountered during the customization of this product:

Customized Tracks: The tracks undergo high-precision cold-bending based on a preset radius, ensuring a smooth curvature free of any hitches or jamming.

Specialized Hanger System: The hanger rollers feature rotational freedom, allowing them to adapt to the centrifugal forces and angular shifts encountered during curved travel, thereby preventing roller wear or derailment.

Flexible Transmission: We utilize specialized, reinforced synchronous belts capable of transmitting power along the curved guide rails without snapping or slipping.

Intelligent Synchronous Control: Given the longer travel path and curved trajectory of the door leaves, the control unit executes highly precise calculations of acceleration and deceleration curves to prevent inertial oscillation as the doors come to a halt.

Core Categories

We are able to customize Automatic Curved Operators with varying degrees of curvature to meet diverse project requirements. Typically, our offerings encompass the following primary categories:

Semi-Circular Arc: This is the most common configuration; curving outward, it enhances the sense of spaciousness within the vestibule.

Full Circle: Comprising two sets of curved doors combined to form a cylindrical airlock, this design exudes a sense of grandeur and is ideally suited for high-end commercial venues.

Curved Segment: Custom-tailored specifically to match the unique curvature of the surrounding architectural walls.

Bi-Directional Arc: Features two curved door panels that slide open synchronously toward opposite sides.

Product Advantages

1. Significantly Enhanced Architectural Aesthetics

The curved design offers a more modern aesthetic and greater visual impact. If you wish to elevate the prestige of your building and enhance your brand image—and find the appearance of traditional sliding doors to be too monotonous—please contact us to commission a custom-designed curved door solution.

2. Smoother Pedestrian Flow

A curved entrance aligns more naturally with pedestrian traffic patterns, thereby improving efficiency and comfort for those entering and exiting the building. This design effectively mitigates issues such as entrance congestion and inefficient traffic flow.

3. Extensive Customization Capabilities

The curvature, dimensions, and number of door panels for the Automatic Curved Operator can all be fully customized, allowing us to meet the unique and personalized requirements of your architectural design with a high degree of precision.

4. Smooth and Silent Operation

Much like our standard automatic sliding door systems, the Automatic Curved Operator features a precision-engineered drive system that ensures smooth, fluid movement with minimal noise output.

5. Intelligent and Secure

All OWNIC automatic door systems are equipped with advanced anti-pinch and anti-collision safety mechanisms, ensuring reliable and secure operation. Furthermore, the systems support integration with access control and fire alarm systems, and can be seamlessly connected to broader intelligent building management platforms.

FAQ

Q: Why does a curved door seem to operate slightly slower than a linear door?

A: This is a deliberate design choice implemented for the sake of safety and mechanical protection.

Since the door leaf moves along a curved path, the resulting centrifugal force causes uneven stress distribution on the suspension rollers. To ensure smooth operation and extend the lifespan of the rollers, the control algorithms within the Automatic Curved Operator are typically configured to utilize gentler acceleration and deceleration curves.

Q: Are the suspension rollers for the Automatic Curved Operator interchangeable with those used in standard linear sliding door systems?

A: No, they are not interchangeable. The suspension roller assemblies for curved doors feature either a universal adjustment mechanism or a horizontal pivot axis. This design allows the rollers to automatically fine-tune their angle as the door leaf glides along its curved path, ensuring they remain perpendicular to the track's contact surface and thereby preventing noise caused by lateral friction.
