X-Ray Shielding Swing Door

Welcome to purchase high-quality X-Ray Shielding Swing Doors from OWNIC. We are a manufacturer with 40 years of experience, and our products meet the cleanliness standards of medical institutions. They utilize high-quality components, ensuring a long service life and stable operation.

Send Inquiry

Product Description

Are you still searching for a reliable manufacturer and supplier of X-ray shielding swing doors? Do you require solutions that comply with local medical acceptance standards? Contact OWNIC today. We offer OEM services and comprehensive technical support, providing tailored product designs for a wide range of applications - including CT rooms, DR machine rooms, dental imaging suites, nuclear medicine control rooms, and more.

Application:

Section of Radiology, Operating Room

Product Features:

1. The door features a lead plate lining with a lead equivalence of 2-4 mmPb, effectively shielding against X-rays and preventing leakage of various harmful radiation to protect human health. It has been tested and certified by the National Institute for Radiological Protection, China CDC, meeting diagnostic X-ray protection requirements.

2. The door opening is finished with multi-style edging and high-strength, wear-resistant sealing strips, ensuring compliance with cleanliness standards for medical facilities such as hospitals.

3. The door leaf offers multiple construction options: aluminum alloy frame with eco-friendly filling, aluminum honeycomb filling, or steel door leaf. A descending sealing brush strip can be fitted at the bottom.

4. Various accessories such as door locks, door closers, and floor springs can be provided according to customer requirements.

5. Precision engineering, from material selection to manufacturing techniques and hardware, ensures high product quality and significantly extends service life.

6. High-quality hardware components are used, providing an aesthetically pleasing appearance and reliable operation.

Technical Data:

Door Weight	Max 300kg
Door Width	800~1000mm
Door Height	2100mm (Standard)
Open Angle	0°~170°

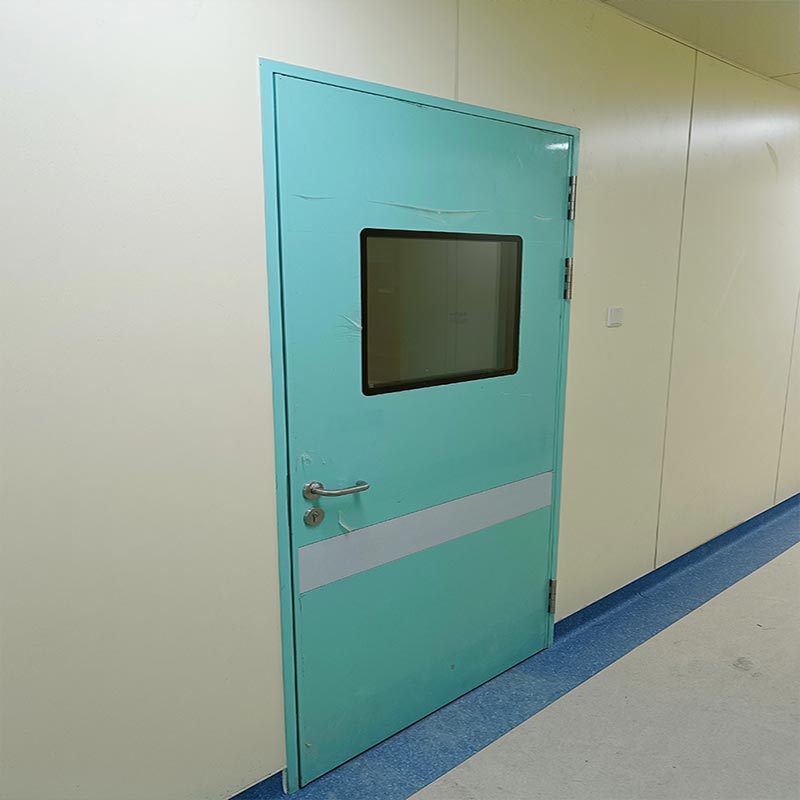

X-Ray Shielding Swing Door

Core Structural Components

1. Radiation-Shielding Door Leaf

The X-Ray Shielding Swing Door features an internal lead plate (2–4 mmPb); the entire door leaf is fully sealed for protection and structurally reinforced to support its weight.

2. Hinged Opening Mechanism

The door leaf connects to the door frame via hinges and is operated manually (pushed open or closed); it can be customized for either single-swing or double-swing configurations.

3. Door Frame Shielding System

The door frame for this product is also embedded with shielding materials, forming a continuous protective layer with the adjacent wall structure to prevent radiation leakage from the edges.

4. Overlapping Seam Design

A lapped structure is employed between the door leaf and the door frame to minimize radiation leakage through the gaps.

In which situations is an X-Ray Shielding Swing Door recommended?

Scene	Requirement	Advantages
Small DR / Dental X-ray Room	Limited space and budget constraints	Simple to install, low-cost, and requires no side-wall space.
Adjacent to Control Room Observation Window	Requires frequent entry/exit and short-distance transit	Features a wide opening angle (up to 170°), ensuring convenient passage.
Historic Building Renovation Project	Preserves the style of the original doorway	Customizable appearance to complement traditional interior designs.
Auxiliary Fire Evacuation Exit	Complies with dual-exit regulations	Can be opened manually during power outages, meeting fire safety regulations.
High-Humidity / Clean Areas (e.g., Rooms Adjacent to MRI Suites)	Prevents dust accumulation in the tracks	No floor tracks, making cleaning effortless.
